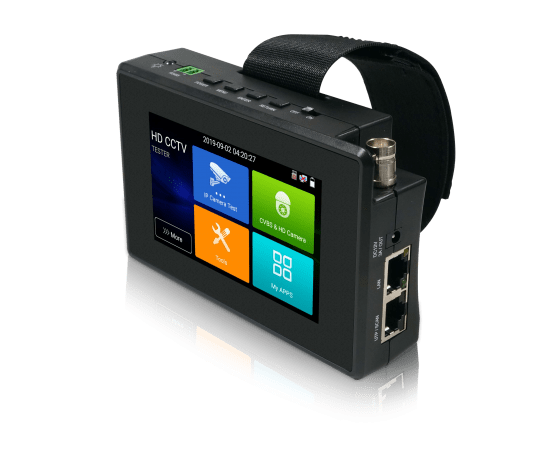

Universal CCTV camera tester with 4-inch touch IPS screen designed for maintenance and installation of analog IP cameras, coaxial HD cameras, and other security equipment. 800×480 resolution enables displaying images from network HD and analog cameras in high resolution. Device supports ONVIF PTZ protocol and analog PTZ control.
Video surveillance system installers often need to carry various testing tools. All-in-one camera tester significantly improves work safety conditions and productivity.
Distinctive Features:
-
4-inch IPS touch screen, 800×480 resolution
-
8MP TVI, 4MP CVI, 5MP AHD camera test
-
H.265/H.264, 4K video display
-

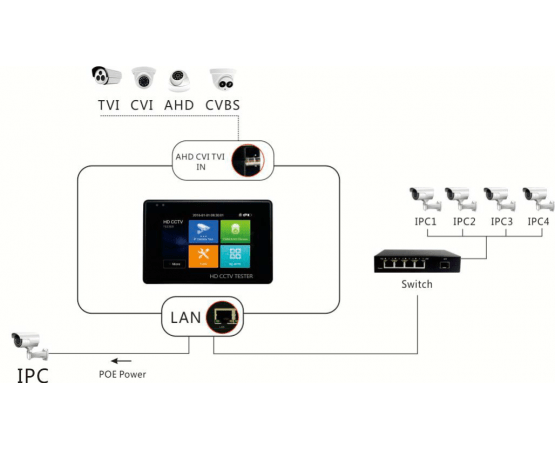

IP and Analog camera testing
-
CVBS and PTZ camera control
-
DC12V 3A, DC48V PoE Output
-
HD coaxial video signal quality test
-
10/100/1000M Ethernet
-
Android System
Technical Specifications
| Parameter | Value |
|---|---|
| Network Port | 10/100/1000 Mbps, RJ45 |
| Wireless Network | Wi-Fi, up to 150 Mbps |
| IP Camera Test | ONVIF protocol support, ONVIF PTZ, various brands |
| Lens Focal Length | 2.8, 3.6, 4.3, 6, 8, 12, 17, 25 mm |
| IP Camera Codec Support | H.264, H.265 for 4K content |
| CVBS | Single analog BNC input with NTSC/PAL auto-detection |
| PTZ Protocol Support | Over 80 protocol types |
| AHD Image Display | 8MP, 3840×2160P, 15 FPS |
| CVI Image Display | 8MP, 3840×2160P, 12.5/15 FPS |
| TVI Image Display | 8MP, 3840×2160P, 12.5/15 FPS |
| Video/Image | 4x zoom, recording, saving, playback |
| Audio | Level adjustment, recording/playback |
| Network Test | IP scanning, link and ping testing |
| Display | 4″ IPS touch screen, 800×480 pixels |
| Battery | 7.4V 2400mAh lithium battery |
| Battery Life | ~8 hours |
| PoE Output | 48V PoE, max 24W |
| Dimensions | 126×83×33 mm |
| Weight | 320 g |
Package Includes:
-
CCTV tester WANGLY IPC-1800ADH Plus – 1 pc
-
Power adapter – 1 pc
-
Wrist strap – 1 pc
-
12V cable – 1 pc
-
RJ485 cable – 1 pc
-
BNC cable – 1 pc
-
Audio cable – 1 pc
